Produkt-Details
Herkunftsort: China
Markenname: TC
Modellnummer: RVVP-ART 300/300V
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge: 50 Kästen
Preis: Negotiable
Verpackung Informationen: Seetaugliche Verpackung
Zahlungsbedingungen: Western Union, T/T, L/C, MoneyGram
Art: |
RVVP-ART 300/300V |
Kern-Zahl: |
1/2/3/4/5 |
Dichte der Abschirmung von Schicht: |
60- 80% |
Bündel-angeschwemmter Leiter: |
Ja |
PVC-Isolierung: |
Ja |
PVC-Hülle: |
Ja |
Umsponnenes Schild: |
Ja |
Produkt, das Standard einführt: |
JB/T8734.5-2012 |
Art: |
RVVP-ART 300/300V |
Kern-Zahl: |
1/2/3/4/5 |
Dichte der Abschirmung von Schicht: |
60- 80% |
Bündel-angeschwemmter Leiter: |
Ja |
PVC-Isolierung: |
Ja |
PVC-Hülle: |
Ja |
Umsponnenes Schild: |
Ja |
Produkt, das Standard einführt: |
JB/T8734.5-2012 |

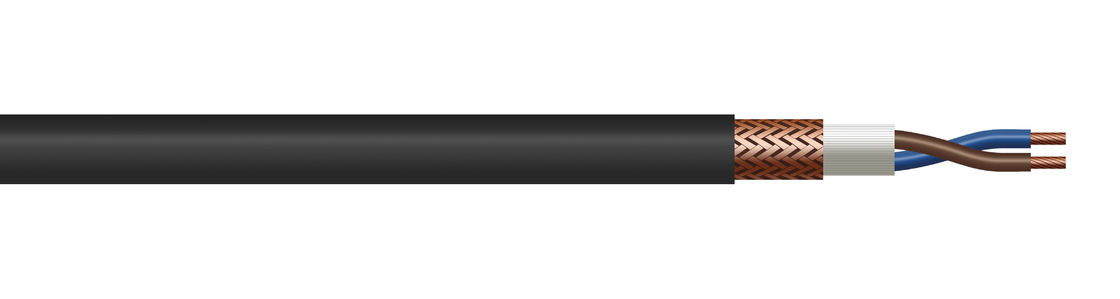

Produktübersicht
Dieses Produkt ist für Elektrogeräte, elektronische Ausrüstungen der Instrumente und Automaten mit bewerteter Wechselspannung Uo/U 300/300V oder unten passend, und verwendet für die verdrahtende Verbindung mit der Abschirmung von Anforderungen.
Langfristige Gebrauchstemperatur des Kabels ist von -15℃ zu 70℃, ist das Kabel, das Temperatur legt, nicht kleiner als 0℃, und Temperatur kann für speziellen Gebrauch besonders angefertigt werden.
Technische Details
Nennquerschnitt der Kernzahl x (m㎡) | Isolierungsstärke (Millimeter) | Dichte der Abschirmung der Schicht (%) | Hüllenstärke (Millimeter) | Durchschnitt Außendurchmesser oder Gesamtausmasse (Millimeter) |
Max. Leiterwiderstand an 20℃ (Ω/km) |
Minimaler Isolationswiderstand an 70℃ (MΩ/km) |
||
Unterere Grenze | Obere Grenze | Kupferkern | Konservierter Kupferkern | |||||
1*0.08 | 0,4 | 60-80 | 0,4 | 2,4 | 2,9 | 247 | 254 | 0,018 |
1*0.12 | 0,4 | 60-80 | 0,4 | 2,4 | 3,0 | 158 | 163 | 0,016 |
1*0.2 | 0,4 | 60-80 | 0,4 | 2,6 | 3,2 | 92,3 | 95,0 | 0,013 |
1*0.3 | 0,5 | 60-80 | 0,4 | 2,9 | 3,5 | 69,2 | 71,2 | 0,014 |
1*0.4 | 0,5 | 60-80 | 0,4 | 3,0 | 3,7 | 48,2 | 49,6 | 0,013 |
1*0.5 | 0,5 | 60-80 | 0,4 | 3,1 | 3,8 | 39,0 | 40,1 | 0,012 |
1*0.75 | 0,6 | 60-80 | 0,4 | 3,4 | 4,1 | 26,0 | 26,7 | 0,010 |
1*1.0 | 0,6 | 60-80 | 0,6 | 4,1 | 4,9 | 19,5 | 20,0 | 0,010 |
1*1.5 | 0,6 | 60-80 | 0,6 | 4,3 | 5,2 | 13,3 | 13,7 | 0,009 |
1*2.5 | 0,7 | 60-80 | 0,6 | 4,9 | 6,0 | 7,98 | 8,21 | 0,008 |
2*0.08 | 0,4 | 60-80 | 0,4 | 3,2 2.4x3.5 |
4,2 2.9x4.2 |
247 | 254 | 0,018 |
2*0.12 | 0,4 | 60-80 | 0,6 | 3,7 2.8x4.0 |
4,9 3.4x4.9 |
158 | 163 | 0,016 |
2*0.2 | 0,4 | 60-80 | 0,6 | 4,1 3.0x4.4 |
5,3 3.6x5.3 |
92,3 | 95,0 | 0,013 |
2*0.3 | 0,5 | 60-80 | 0,6 | 4,8 3.5x5.1 |
6,2 4.2x6.2 |
69,2 | 71,2 | 0,014 |
2*0.4 | 0,5 | 60-80 | 0,6 | 5,1 3.6x5.4 |
6,6 4.4x6.6 |
48,2 | 49,6 | 0,013 |
2*0.5 | 0,5 | 60-80 | 0,6 | 5,3 3.7x5.6 |
6,8 4.5x6.8 |
39,0 | 40,1 | 0,012 |
2*0.75 | 0,6 | 60-80 | 0,6 | 5,8 4.0x6.1 |
7,4 4.8x7.4 |
26,0 | 26,7 | 0,010 |
2*1.0 | 0,6 | 60-80 | 0,6 | 6,4 4.3x6.7 |
8,2 5.2x8.3 |
19,5 | 20,0 | 0,010 |
2*1.5 | 0,6 | 60-80 | 0,8 | 7,3 4.9x7.6 |
9,2 6.0x9.3 |
13,3 | 13,7 | 0,009 |
3*0.12 | 0,4 | 60-80 | 0,6 | 3,9 | 5,1 | 158 | 163 | 0,016 |
3*0.2 | 0,4 | 60-80 | 0,6 | 4,5 | 5,8 | 92,3 | 95,0 | 0,013 |
3*0.3 | 0,5 | 60-80 | 0,6 | 5,1 | 6,5 | 69,2 | 71,2 | 0,014 |
3*0.4 | 0,5 | 60-80 | 0,6 | 5,4 | 6,9 | 48,2 | 49,6 | 0,013 |
3*0.5 | 0,5 | 60-80 | 0,6 | 5,6 | 7,1 | 39,0 | 40,1 | 0,012 |
3*0.75 | 0,6 | 60-80 | 0,6 | 6,1 | 7,8 | 26,0 | 26,7 | 0,010 |
3*1.0 | 0,6 | 60-80 | 0,8 | 7,2 | 9,1 | 19,5 | 20,0 | 0,010 |
3*1.5 | 0,6 | 60-80 | 0,8 | 8,0 | 10,0 | 13,3 | 13,7 | 0,009 |
4*0.12 | 0,4 | 60-80 | 0,6 | 4,5 | 5,8 | 158 | 163 | 0,016 |
4*0.2 | 0,4 | 60-80 | 0,6 | 4,9 | 6,2 | 92,3 | 95,0 | 0,013 |
4*0.3 | 0,5 | 60-80 | 0,6 | 5,5 | 7,0 | 69,2 | 71,2 | 0,014 |
4*0.4 | 0,5 | 60-80 | 0,6 | 5,9 | 7,5 | 48,2 | 49,6 | 0,013 |
5*0.12 | 0,4 | 60-80 | 0,6 | 4,8 | 6,2 | 158 | 163 | 0,016 |
5*0.2 | 0,4 | 60-80 | 0,6 | 5,3 | 6,7 | 92,3 | 95,0 | 0,013 |
5*0.3 | 0,5 | 60-80 | 0,6 | 6,0 | 7,6 | 69,2 | 71,2 | 0,014 |
5*0.4 | 0,5 | 60-80 | 0,6 | 6,4 | 8,1 | 48,2 | 49,6 | 0,013 |
6-7*0.12 | 0,4 | 60-80 | 0,6 | 5,2 | 6,6 | 158 | 163 | 0,016 |
6-7*0.2 | 0,4 | 60-80 | 0,6 | 5,7 | 7,2 | 92,3 | 95,0 | 0,013 |
6-7*0.3 | 0,5 | 60-80 | 0,6 | 6,5 | 8,2 | 69,2 | 71,2 | 0,014 |
6-7*0.4 | 0,5 | 60-80 | 0,8 | 7,3 | 9,2 | 48,2 | 49,6 | 0,013 |
8*0.12 | 0,4 | 60-80 | 0,6 | 6,0 | 7,2 | 158 | 163 | 0,016 |
8*0.2 | 0,4 | 60-80 | 0,6 | 6,6 | 7,9 | 92,3 | 95,0 | 0,013 |
8*0.3 | 0,5 | 60-80 | 0,6 | 7,4 | 8,7 | 69,2 | 71,2 | 0,014 |
8*0.4 | 0,5 | 60-80 | 0,8 | 8,0 | 9,3 | 48,2 | 49,6 | 0,013 |
9-10*0.12 | 0,4 | 60-80 | 0,6 | 6,4 | 8,1 | 158 | 163 | 0,016 |
9-10*0.2 | 0,4 | 60-80 | 0,8 | 7,4 | 9,3 | 92,3 | 95,0 | 0,013 |
9-10*0.3 | 0,5 | 60-80 | 0,8 | 8,7 | 10,9 | 69,2 | 71,2 | 0,014 |
9-10*0.4 | 0,5 | 60-80 | 0,8 | 9,3 | 11,6 | 48,2 | 49,6 | 0,013 |
11-12*0.12 | 0,4 | 60-80 | 0,6 | 6,6 | 8,3 | 158 | 163 | 0,016 |
11-12*0.2 | 0,4 | 60-80 | 0,8 | 7,6 | 9,6 | 92,3 | 95,0 | 0,013 |
11-12*0.3 | 0,5 | 60-80 | 0,8 | 9,0 | 11,2 | 69,2 | 71,2 | 0,014 |
11-12*0.4 | 0,5 | 60-80 | 0,8 | 9,6 | 11,9 | 48,2 | 49,6 | 0,013 |
13-14*0.12 | 0,4 | 60-80 | 0,8 | 7,2 | 9,1 | 158 | 163 | 0,016 |
13-14*0.2 | 0,4 | 60-80 | 0,8 | 8,2 | 10,3 | 92,3 | 95,0 | 0,013 |
13-14*0.3 | 0,5 | 60-80 | 0,8 | 9,4 | 11,7 | 69,2 | 71,2 | 0,014 |
13-14*0.4 | 0,5 | 60-80 | 0,8 | 10,0 | 12,5 | 48,2 | 49,6 | 0,013 |
16*0.12 | 0,4 | 60-80 | 0,8 | 7,6 | 9,5 | 158 | 163 | 0,016 |
16*0.2 | 0,4 | 60-80 | 0,8 | 8,6 | 10,8 | 92,3 | 95,0 | 0,013 |
16*0.3 | 0,5 | 60-80 | 0,8 | 9,9 | 12,3 | 69,2 | 71,2 | 0,014 |
16*0.4 | 0,5 | 60-80 | 0,8 | 10,5 | 13,1 | 48,2 | 49,6 | 0,013 |
19*0.12 | 0,4 | 60-80 | 0,8 | 8,2 | 10,3 | 158 | 163 | 0,016 |
19*0.2 | 0,4 | 60-80 | 0,8 | 9,0 | 11,3 | 92,3 | 95,0 | 0,013 |
19*0.3 | 0,5 | 60-80 | 0,8 | 10,4 | 12,9 | 69,2 | 71,2 | 0,014 |
19*0.4 | 0,5 | 60-80 | 1,0 | 11,5 | 14,2 | 48,2 | 49,6 | 0,013 |
24*0.12 | 0,4 | 60-80 | 0,8 | 9,4 | 11,7 | 158 | 163 | 0,016 |
24*0.2 | 0,4 | 60-80 | 0,8 | 10,4 | 12,9 | 92,3 | 95,0 | 0,013 |
24*0.3 | 0,5 | 60-80 | 1,0 | 12,4 | 14,4 | 69,2 | 71,2 | 0,014 |
24*0.4 | 0,5 | 60-80 | 1,0 | 13,2 | 16,4 | 48,2 | 49,6 | 0,013 |
